Will residents’ existing prox cards keep working?
Yes — the 125 kHz radio reads legacy prox cards from day one, while new 13.56 MHz smart credentials and Mobile Pass phones roll out in parallel.
★ Brivo

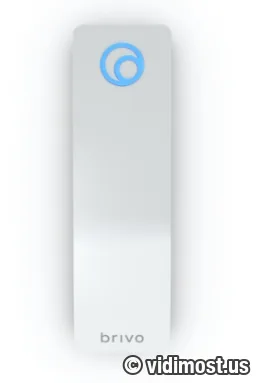

Brivo B-BSPMF Mullion Reader (Tri-Technology)
Model B-BSPMF · SKU B-BSPMF-B
Slim tri-technology reader for narrow door frames: 13.56 MHz smart credentials, Brivo Mobile Pass phones, and legacy 125 kHz prox in a mullion body. Available as B-BSPMF-B in black and B-BSPMF-W in white.
We install and repair access control systems across Chicago, the North Shore and the northwest suburbs — ask about the B-BSPMF for your building or business.
- Credentials 13.56 MHz + 125 kHz prox + Bluetooth
- Mount Mullion — narrow frames
- Colors B-BSPMF-B black / B-BSPMF-W white
- Protocols OSDP & Wiegand
$324 MSRP · project pricing on quote
Key details
| Brand | Brivo |
|---|---|
| Dimensions | 144.8 x 43.2 x 18.0 mm (5.7 x 1.7 x 0.71 in) |
| Catalog category | Access Control Systems |
| Typical use | Security projects in Chicago North Shore – homes, small business and multifamily buildings, depending on how the system is designed. |
| How we use it | As part of complete systems (cameras, access control, intercoms, networking) rather than standalone online sales. |
Product overview and installer notes
Aluminum storefront frames and glass entries were fitted with narrow mullion prox readers for decades, and this is the reader that replaces them without touching the frame: same slim cutout, three credential technologies inside. It runs on 13.56 MHz for encrypted smart cards and fobs, takes phones over Bluetooth, and still reads the 125 kHz prox cards residents already carry — which is what makes the swap painless.
Specs, firmware notes and availability change over time — confirm against the manufacturer’s current documentation before ordering.
Made for the frames the old readers lived on
Walk any Chicago storefront strip and look at the door frames: narrow aluminum mullions with a slim prox reader screwed on sometime in the 2000s. A single-gang reader physically does not fit there. The B-BSPMF does — same footprint class as the readers it replaces, so the frame keeps its cutout and the door keeps its look.
Because it is tri-technology, the old cards stay valid past installation day. The 125 kHz radio reads them as before, while the 13.56 MHz side and Brivo Mobile Pass phones come online immediately. Buildings then move people to encrypted credentials over weeks, not over one chaotic weekend — the same migration logic as its single-gang sibling, the B-BSPSF.
Hardware notes
Sealed housing rated for outdoor mounting — storefront duty in January included. LED and beeper answer every read, Bluetooth has a separate indicator, and the anti-tamper screw needs its special key rather than a screwdriver. On Brivo panels it connects over OSDP, which carries the secure channel and the phone-entry features; Wiegand mode covers third-party controllers. Warranty is 5 years.
B-BSPMF-B is the black version, B-BSPMF-W the white one. The color is the only difference between the two part numbers — $324 MSRP either way.
Common questions about the B-BSPMF
What is the difference between B-BSPMF-B and B-BSPMF-W?
Only the color: B is black, W is white. Everything else — radios, sealing, warranty, $324 MSRP — is identical.
Why choose this over the single-gang B-BSPSF?
Purely the mounting surface. Narrow aluminum or steel door frames take the mullion body; standard electrical boxes take the single-gang. The credential support is the same.
Is it weatherproof?
Yes — sealed against rain and dust, suitable for exterior doors and gates as well as interiors.
