★ Brivo
Model ACS6000 · SKU B-ACS6000-MBE

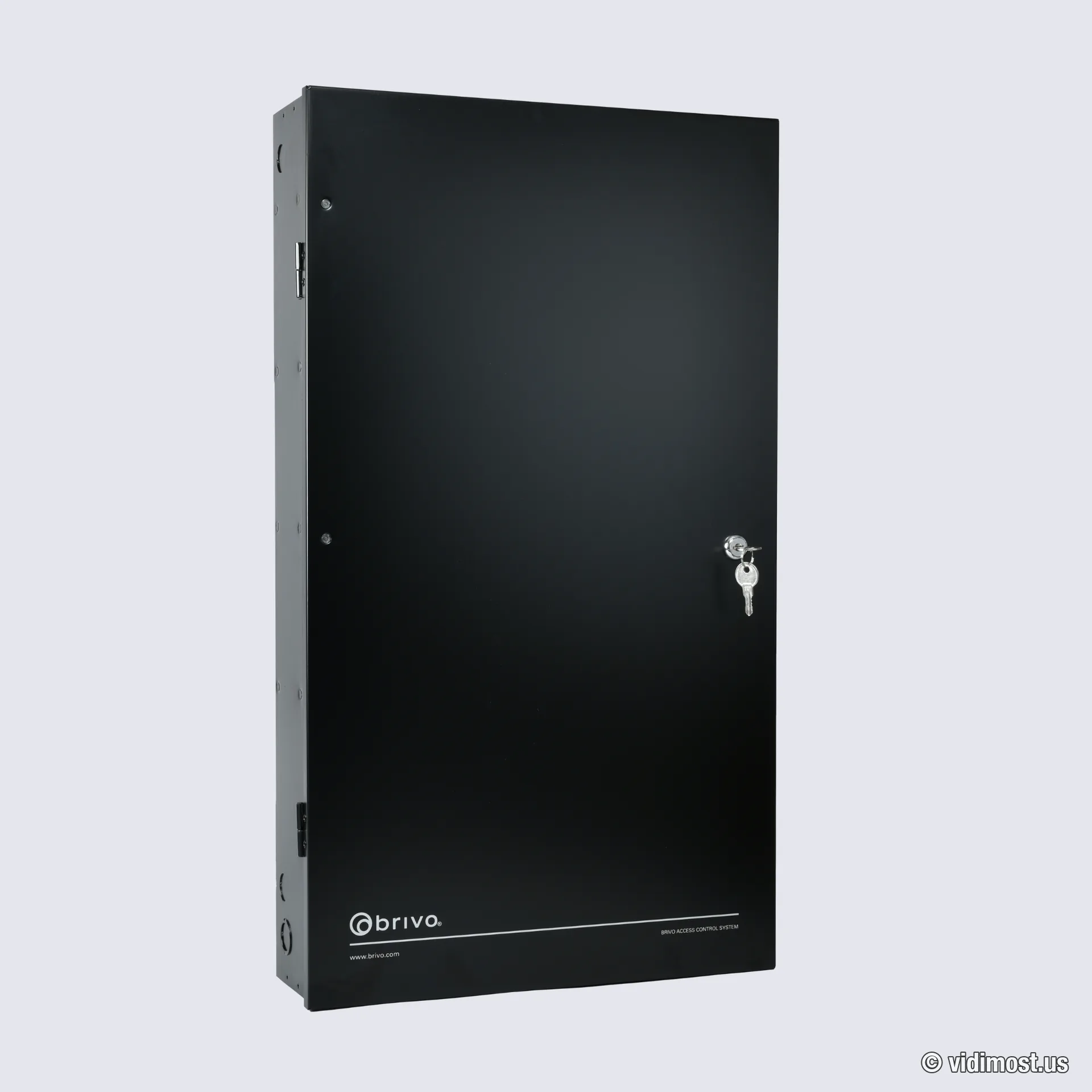

The large-system Brivo panel: a key-locked cabinet with a main board, door and I/O expansion boards on a CAN bus, and a 12V backup battery inside. This is what we install when a building has more doors than an ACS300 can carry.
We install and repair access control systems across Chicago, the North Shore and the northwest suburbs — ask about the ACS6000 for your building or business.
| Brand | Brivo |
|---|---|
| Dimensions | 439 x 397 x 89 mm, 2-board chassis (17.3 x 15.6 x 3.5 in) |
| Catalog category | Access Control Systems |
| Typical use | Security projects in Chicago North Shore – homes, small business and multifamily buildings, depending on how the system is designed. |
| How we use it | As part of complete systems (cameras, access control, intercoms, networking) rather than standalone online sales. |
The Brivo ACS6000 is the panel we quote when a Chicago building outgrows one or two doors — the main board starts at two door channels and expansion boards take it from there. It also covers the ACS300’s main gap: the cabinet holds a 12V backup battery, so doors ride through outages without extra engineering. For property managers the bigger story is operational — a whole portfolio of buildings behind one browser login, with no on-site server to keep alive.
Specs, firmware notes and availability change over time — confirm against the manufacturer’s current documentation before ordering.
In the Brivo lineup this is the big one. When a building needs more than a couple of doors — lobby, garage, elevator lobbies, amenity rooms, service entrances — the ACS6000 ties them together. For one or two doors we install the ACS300 instead; nobody buys a cabinet like this for a single entrance.
The main board handles two doors on its own; door boards and input/output boards extend it, all talking to the main board over a separate CAN bus. Boards bolt into the same cabinet, or into extra expansion chassis once the first one fills up. The cabinet locks with a key, which sounds minor until the panel hangs in a shared utility room.
The board also carries AUX inputs and outputs, so other devices on the property can trigger through it and land in the same Brivo event log — one timeline for everything that happens at the doors.
Power input is flexible: 12V DC, 19V DC, or 16V AC from a Brivo power supply. The panel feeds electric locks directly with 12V DC, so a standard strike does not need its own supply.
The difference from the smaller panels: the cabinet takes a 12V backup battery, 7–12 Ah. When the building loses power, doors on this panel keep working on battery — no separate UPS engineering required. For a property where the garage gate or the main entrance must never sit dead, that alone can justify the bigger chassis.
Expansion boards do not have to sit next to the main board. They can live up to 1,200 meters away on the bus, and that one number changes the economics of upgrading an old access system.
On a legacy takeover we swap the old controllers and readers, and keep everything that still works: locks, door contacts, motion sensors, power supplies. An expansion board goes where the old panel used to hang, picks up the existing field wiring, and reports back to the ACS6000 over the bus. The building ends up on a modern cloud platform for a fraction of the rip-and-replace price. That single move carries most of our system upgrade projects in Chicago.
Ethernet is the default path to Brivo’s cloud. Add the Wi-Fi antenna and the panel connects wirelessly too — as the primary channel or as a backup that takes over when the wired route fails. Same caveat as on the ACS300: Wi-Fi is 2.4 GHz only, no 5 GHz.
Where internet reliability is a known problem, an optional LTE modem adds a cellular backup channel. It is a separate purchase, not in the box — but for a gate that has to take remote commands no matter what, it is cheap insurance.
Readers connect over Wiegand or OSDP, third-party or genuine Brivo. OSDP is where the good features live: it carries the Bluetooth side, so residents can open the door from the phone — or just tap the reader’s logo while an authorized phone sits in a pocket or bag. People stop caring where their fob went.
On these systems we usually pair the panel with the B-BSSF-B single-gang at main entries and the slim B-BSPMF-B mullion on narrow door frames.
The same panel runs vehicle entries — the part Chicago condo boards ask about first. A small RFID sticker on the windshield opens the garage or the gate as the car rolls up. No clicker hunting, no window down in January.
A detail Chicago drivers will appreciate — interference with tollway stickers was a known disease of the older readers. A resident would put a fresh I-PASS on the glass and the old garage system would stop recognizing their tag. The Control iD readers we use with Brivo have this solved: I-PASS and the access tag coexist without stepping on each other.
Classic radio remotes work as well, and under Brivo they stop being dumb clickers. Every remote and every windshield tag is a unique credential, added to the account the same way as a key fob. Access rights are set per zone, so residents enter only their own garage; when a tenant moves out or leaves parking bills unpaid, their tag is shut off in a couple of clicks. Every entry is time-stamped in the log if the board ever wants the numbers.
All of the above is managed through Brivo’s cloud — nothing runs on site and there is no software to install. A property manager signs into the web interface like any website and can release a door or a gate remotely, pull door logs, add a fob or shut one off. Adding or killing a credential is as quick as checking email or the weather app.
For managers running several buildings, the whole portfolio lives in one account under a single login. The requirement has not changed: Brivo runs only on a Brivo subscription, and without it the panel does not run at all. Before quoting a system this size we walk every door and gate on the property — it changes the design more often than boards expect.
The main board (part number B-ACS6000-MBE) lists at $2,365 MSRP. A full system adds the cabinet, door expansion boards, readers and lock hardware, so we price per project. The Brivo Access subscription is billed separately.
Two doors on the main board; expansion boards add more, in the same cabinet or in remote chassis on the CAN bus. Our larger Brivo systems run dozens of doors on this platform.
Yes — the cabinet takes a 12V battery, 7–12 Ah, so doors keep working through an outage. Unlike the ACS300, no external UPS is needed.
Largely yes. Expansion boards can sit up to 1,200 meters from the main panel and pick up the existing locks, door contacts, sensors and power supplies. We replace the controllers and readers and keep the rest, which is what makes these upgrades affordable.
Yes. Windshield RFID tags open the gate as the car approaches, and radio remotes become unique credentials with per-zone access rights. The Control iD readers we use coexist with I-PASS tollway stickers — the interference problem of older systems is solved.
No. The subscription is mandatory — management, credentials and logs live in Brivo’s cloud, which is also what makes browser-based remote control and multi-building accounts possible.
If you already have Brivo hardware on site and the system is unstable, we can audit it, fix urgent issues and plan upgrades step by step instead of forcing a complete replacement. This includes systems originally installed by other vendors.
We offer free estimates for projects in our service area. New service clients also receive a 50% discount on the first service visit for troubleshooting and diagnostics, including systems we did not install.
To move forward, go to the Contact page and mention model ACS6000 in your message. You can also attach photos of your existing equipment, panels or racks to speed up the design and service process.
